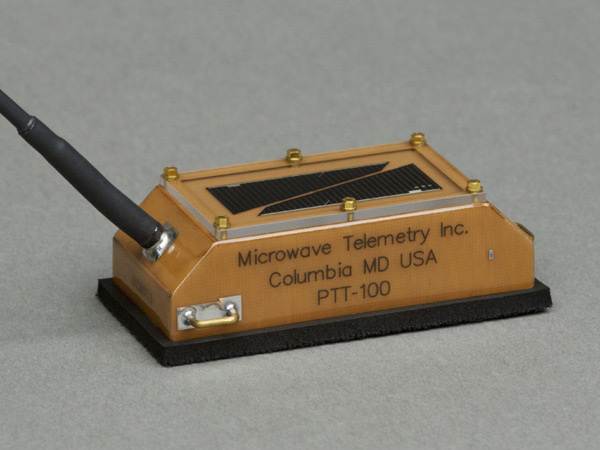

Solar 35g PTT

Solar 35g PTTFeatures

  • Solar-powered, rechargeable battery
  • Microprocessor-controlled power management
  • Programmable duty cycle
  • Multi-season duty cycle timer available
  • Optional XT™ programming
  • Optional Seasonal GT™ and Mortality GT™
  • Operating lifetime up to 3 years

Dimensions* Length: 2.44 in (6.20 cm)  x  Width: 1.14 in (2.90 cm)  x  Height: 0.69 in (1.75 cm)
Antenna: 7.00 in (17.78 cm) protruding from the back edge of the transmitter 45 degrees to the bottom face
Sensors Temperature, battery voltage, activity
Construction The housing is constructed from a lightweight glass-reinforced epoxy composite material with a contiguous interior metal-plated coating. The unit is hermetically sealed with a metal-to-metal solder joint providing stability during changes in temperature and humidity. The solar array is encapsulated in silicone and covered with a polycarbonate window for added durability.
Attachment options Backpack (with standard neoprene cushioning pad)
Color options Standard Finish: classic, dark brown, medium brown, gray, white, black
Matte Finish:** desert sand, brown sand, black sand
Example species Osprey, White Stork, Glaucous Gull, Albatrosses
* Harnessing loops and neoprene pad not included in these dimensions.
** Matte finish does not apply to the polycarbonate window covering the solar array.


As one of our larger PTT models, the Solar 35g PTT is constructed with a sturdy polycarbonate window over the solar array for added durability. Although this model generally has an operating lifetime of up to 3 years, historically, some 35g PTTs have endured for over 8 years! Read more about these amazing long-term tracks.
